The Split Set stabilizer is a slotted steel tube, with one end tapered for easy insertion into a drill hole. The other end has a welded ring flange to hold the bearing plate.
The stabilizer is inserted into a hole slightly smaller in diameter than the tube, using a simple driver tool fitted to the drill. As the tube enters, its diameter is compressed and the slot partially closes. This exerts radial forces along the length of contact with the rock, providing the friction which holds the rock together. The driving force of the drill actively loads the bearing plate against the rock. Tubes and plates are available standard or galvanized, made in accordance with ASTM F 432-95 where applicable. Code stampings on the tube show its size, date and place of manufacture, and heat lot of steel.
advantage
It provide seamless support for rock and soil formations. The system uses a special anchoring technique to provide full-column grouting and helps to ensure that the bolt remains tightly in place throughout its lifespan.
THE INSTALLATION OF SPLIT SETS IS A QUICK AND EASY install.
Installing split sets is a relatively quick and easy process, and they can provide a high level of support with minimal equipment. However, it is important to follow proper safety procedures and guidelines when installing split sets to minimize the risk of accidents or
Injuries.
No anchoring agent required;
4.Environmentally friendly. They are designed to withstand harsh weather conditions and resist corrosion, reducing the need for frequent replacements and helping to lessen the environmental impact of construction projects.

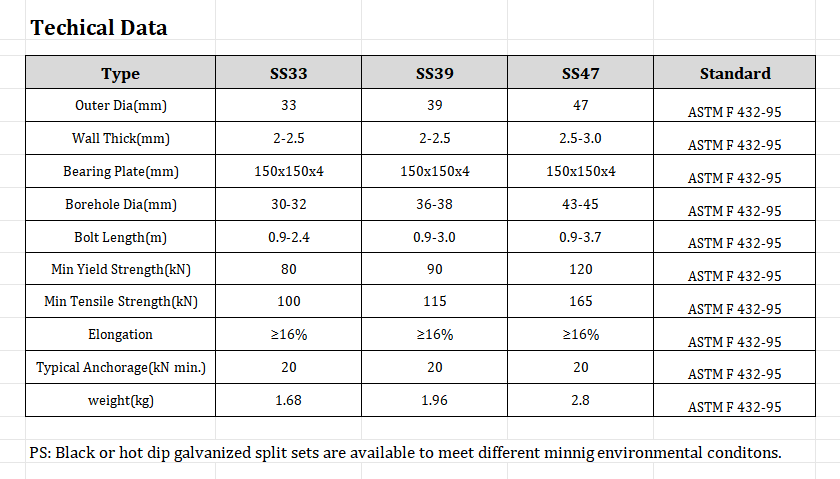

Norminal size: 33mm, 39mm, 46mm and 47mm diameter
