Dome plates are high load bearing capacity plates that provide optimal support in a range of strata conditions. These plates are typically used with solid bolts, friction bolts, coal bolts and cable bolts.
Plates are available in numerous dimensions to suit any bolt type and diameter in our product range.
Available in sizes 125mm, 150mm and 200mm square. Plates are available with or without a hanger loop in black steel or hot dip galvanized.

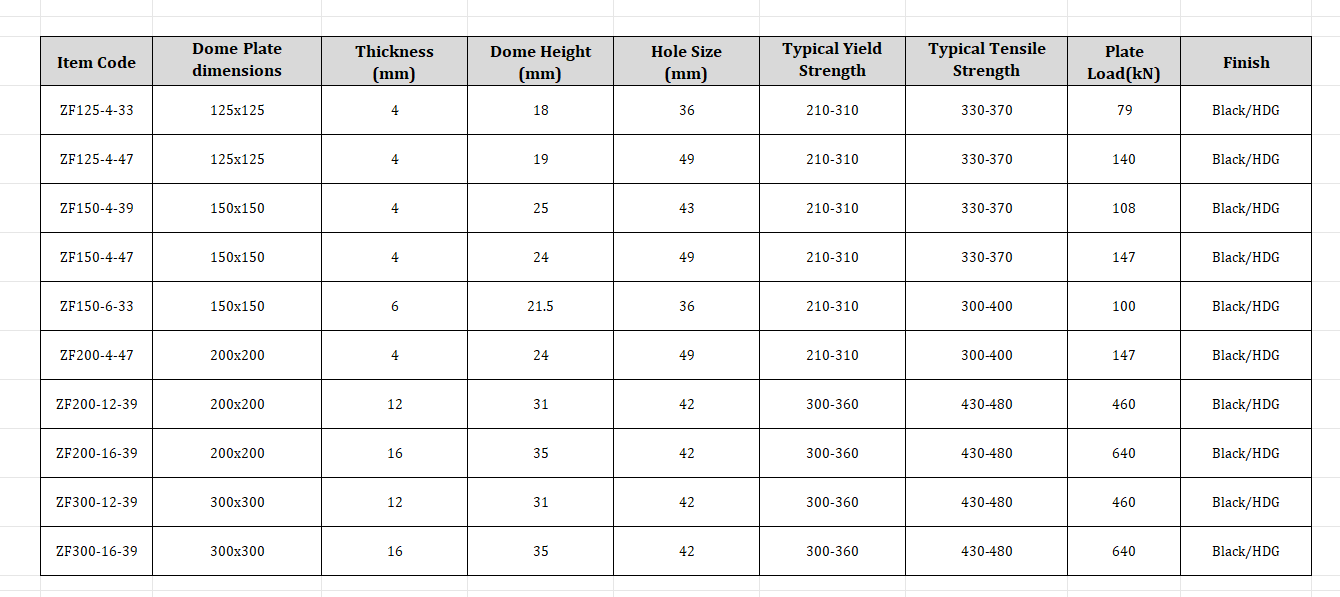

Specification(mm):
application and uses
As an important part of the bolt support system. the bolt plate has a direct effect on the supporting effect of the bolt. Plate is the role of the lock nut tightening torque generated by the thrust is transmitted to help, at the beginning of the anchor force,at the same time the pressure of the roadway roof will help to anchor, working Resistance common reinforcement of surrounding rock, prevent displacement of the roadway roof to help. So when choosing a tray,the first is to satisfy the match of the bolt and the bolt body on the strength,to avoid the bolt hole caused by the insufficient strength of the bolt plate. The second is to satisfy the bolt and anchor rod on the supporting structure of the match,avoid the anchor rod body with the supporting plate on the supporting structure caused by the mismatch anchor rod body and the nut uneven, influence of roadway supporting effect.
advantages
●Optimal Surface Support, prevents loose material from falling between bolt patterns.
●Provides strength to immediate unstable areas.
●Dome embossments provide additional strength to the plat.
