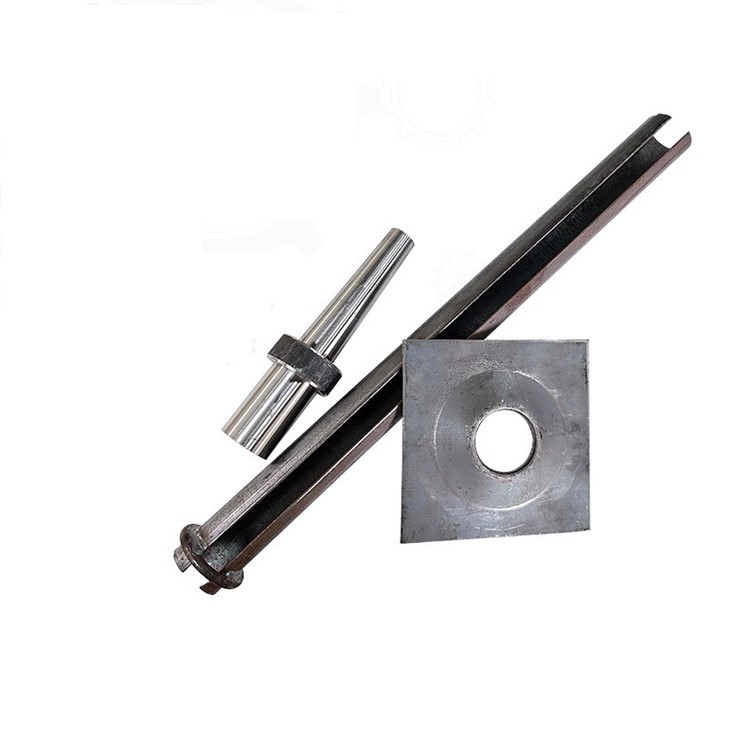

Products Description
(A)Material
The roof material is HRB500 or customization
(B) Size
| Diameter | Yield strength (MPa) | Tensile strength (MPa) | Elongation (%) | Yield load (KN) | Tensile load (KN) | Kg/m |
| φ16 | 345 | 510 | 25 | 69 | 100 | 1.6 |
| φ18 | 345 | 510 | 25 | 87 | 126 | 2.0 |
| φ20 | 345 | 510 | 25 | 108 | 156 | 2.5 |
| φ22 | 345 | 510 | 25 | 131 | 189 | 3 |
(C) Accessories
Bearing plate
Nuts and ball pads
(D)Production process
Rock bolts are short, low capacity reinforcements, which enhances the strength of unstable rock masses and limit shear displacements. Rock bolting is as an economic, safe and effective form of rock support.
Rock bolts are used in tunneling works to support portal face and tunnel roof, as well as for fore-poling. Other applications are to stabilize slopes and fix rock fall barriers.
(E)Thread on the roof bolt
The minimum length of the thread shall be 150±5mm or customization
Key feature of rebar
Fully threaded bar - can be cut and coupled at any point. Robust threadform - ideal for construction site use. Coarse pitch threadform with two flats - ensures self-cleaning of thread. Fully galvanized systems -galvanized threadbars and accessories also available from stock.
Advantage
1. The raw material is high-strength alloy strip steel;
2. The installation is the easiest;
3. No anchoring agent required;
4. The friction between the bolt and the rock mass is large;
5. It has high shear and tensile strength;
6. Equipped with high-strength pallet, the pallet is evenly stressed;
