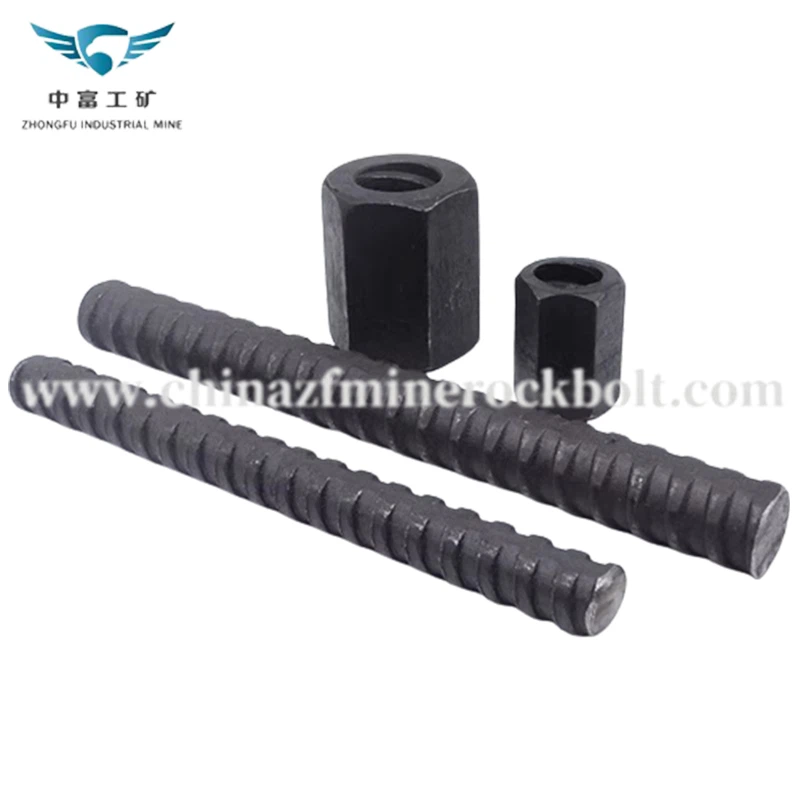

Right-handed rock bolt, also called equal-strength threaded steel bolt, is a tool for determining the anchoring force. It has the characteristics of small size, light weight, easy portability, and simple operation. It is widely used in coal, national defense, tunnels and transportation.
Installation steps for right-hand rock bolt
l. Determine the position of the anchor rod hole according to the design requirements, and use a chisel, anchor rod drill, or coal electric drill to drill holes, with a depth of 80-100mm ali02 shorter than the length of the anchor rod.
2. Insert a compressed air duct into the fundus of the eye and use compressed air to blow out the rock powder in the hole.
3. The drilling diameter is required to be 6-12mm larger than the anchor rod diameter.
4. Use an anchor rod to send the medicine roll into the fundus of the eye, activate the stirring device for stirring, and strictly control the stirring time according to the requirements of resin anchor fixing agent.
5. After reaching the curing time, put on the tray and tighten the nut
