Products feature

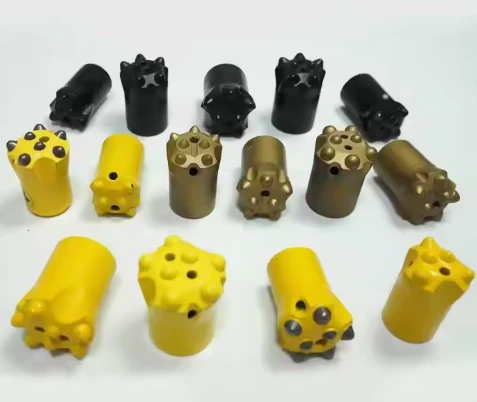

Our Mining Anchor Drill Bits are specifically designed for drilling rock bolt holes in coal mines, metal mines, and tunneling projects. Featuring top-grade tungsten carbide tips and high-strength forged steel bodies, these bits deliver superior rock penetration rates, high wear resistance, and minimal head breakage even in hard and fractured strata.
They are engineered to drill the exact diameter holes required for the safe and rapid installation of split set stabilizers, resin capsules, and threadbar rock bolts.
Key Advantages
Extreme Wear Resistance
High-density tungsten carbide inserts ensure maximum cutting life and reduced bit changing frequency.
Precision Forged Steel Body
Heat-treated alloy steel absorbs extreme impact without cracking or bending during pneumatic or hydraulic drilling.
Optimized Flushing Holes
Excellent debris evacuation design prevents bit jamming and accelerates drilling speed.
Tight Dimensional Tolerance
Guarantees perfect hole straightness and roundness, ensuring the best anchoring performance for subsequent
why choose us?
Mining Anchor Six Core
High hole formation rate
Support customization
Hollow design
Full of grout
Easy installation
High construction efficiency
Specification
| Parameter | Specification |
| Product Name | Mining Anchor Drill Bits / Rock Drilling Bits |
| Diameter | Φ27mm, Φ28mm, Φ30mm, Φ32mm, Φ42mm (Customizable) |
| Bit Types | Cross Bits , PDC Bits, Chisel Bits , Button Bits |
| Body Material | High-grade Alloy Steel 42CrMo / 40Cr |
| Tip Material | YG8, YG11C Virgin Tungsten Carbide |
| Hardness | Steel Body: HRC 40-45; Carbide Tip: HRA ≥ 89 |
| Connection | B19, B22 Hexagon Hollow Drill Steel, Threaded |
| Matched Support System | Split Set Bolts, Threadbar Rock Bolts, Hollow Grouting Anchors |
application
01
Roof Bolting & Strata Support
Drilling anchor holes for coal mine roadways and underground drifts.
02
Tunneling & Cavern Construction
Rail, road, and water conservancy tunnel excavation.
03
Geotechnical Slope Stabilization
Soil nailing and rock anchoring projects.
Integrated Strata Support Solution: After drilling with our anchor bits, explore our matching [Split Sets Anchor Bolts] and [Mining Resin Capsules] for complete underground roof support.
