Epoxy Resin Anchoring Agent High-Bond Strength for Civil & Mining

Premium epoxy resin anchoring agent for heavy-duty structural reinforcement. Superior bond strength, zero shrinkage, and exceptional chemical resistance. Ideal for bridges, dams, and permanent mine support.

Products Description

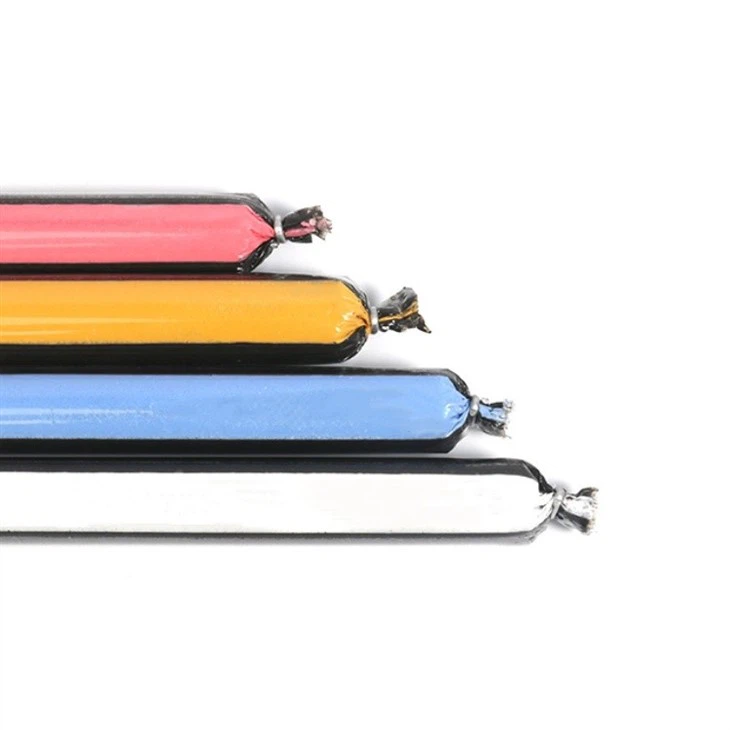

resin capsule

When your project demands the highest level of structural integrity, epoxy resin anchoring agents are the premier choice. Unlike standard polyester resins, our epoxy formulas offer superior adhesion to both steel and rock/concrete, with virtually zero shrinkage during the curing process. At ZF Mining, we provide industrial-grade epoxy solutions for permanent anchoring in the most challenging environments.

High-strength epoxy resin anchoring agent capsules for permanent structural reinforcement.

Code name	Specifications (mm*mm)	Weigh (g/Branch)	Applicable aperture (mm)	Branch / box
2335	Φ23*350	310±20	Φ28±2	50
2360	Φ23*600	530±30	Φ28±2	40
25180	Φ259002	1900±100	Φ28±2	12
25240	Φ2512002	2560±110	Φ28±2	10
2645	Φ26*450	520±30	Φ28±2	30
26240	Φ2612002	2700±120	Φ28±2	8
2835	Φ28*350	460±30	Φ32±2	40
2850	Φ28*500	660±30	Φ32±2	40
28240	Φ2812002	3220±130	Φ32±2	7
30200	Φ3010002	3000±120	Φ35±2	7
30260	Φ3013002	4000±150	Φ35±2	7
3530	Φ35*300	610±40	Φ42±2	40
3537	Φ35*370	750±40	Φ42±2	40

(Note: anchoring agent of other specifications can be produced when customers have special needs: Within the range of 18-40mm in diameter and 200-1500mm in length.)

Products features&advantages

1.High strength	Resin anchoring agents have high strength and can withstand large loads.
2.Corrosion preventive	Resin anchoring agents can be used in corrosive environments such as acid and alkali without being damaged.
3.Heat-resisting	Resin anchoring agents can be used in high-temperature environments and will not fail due to high temperatures.
4.Cold-resistant	Resin anchoring agents can be used in low-temperature environments and will not fail due to low temperatures.

heavy duty epoxy resin anchoring agent for structural support

production environment

Automated precision mixing process for industrial-grade epoxy resin anchoring agent

Advanced automated filling line for mass production of epoxy anchor capsules

Rigorous quality control and bond strength testing of epoxy resin anchoring agent

3Rigorous quality control and bond strength testing of epoxy resin anchoring agent

Need professional advice on resin cartridges for your mine? Contact our engineers.
