When Rock Bolts Are Not Enough: The Power of Cable Anchors in Deep Mine Support
In underground coal mining and tunneling, a single product can never guarantee safety on its own. Whether you are using high-grade steel rebar or advanced composite materials, a rock bolt is only as effective as the plate that holds it, the resin that anchors it, and the wire mesh that contains the surface.
Too often, procurement teams fall into the trap of sourcing ground support components piecemeal-buying bolts from one vendor, mesh from another, and chemical agents from a third. This fragmented approach frequently leads to dimensional mismatches, installation delays, and compromised structural integrity.
To achieve maximum safety and operational efficiency, mines need an Integrated Ground Support Package. Here is a professional guide on how to build and match a complete support system for underground coal mining.
A truly reliable underground support system acts as a unified matrix, transferring load seamlessly from the loose rock face all the way to the deep, stable strata. Every component plays a non-negotiable role:
A. The Primary Anchor (Threaded Bolts or FRP Bolts)

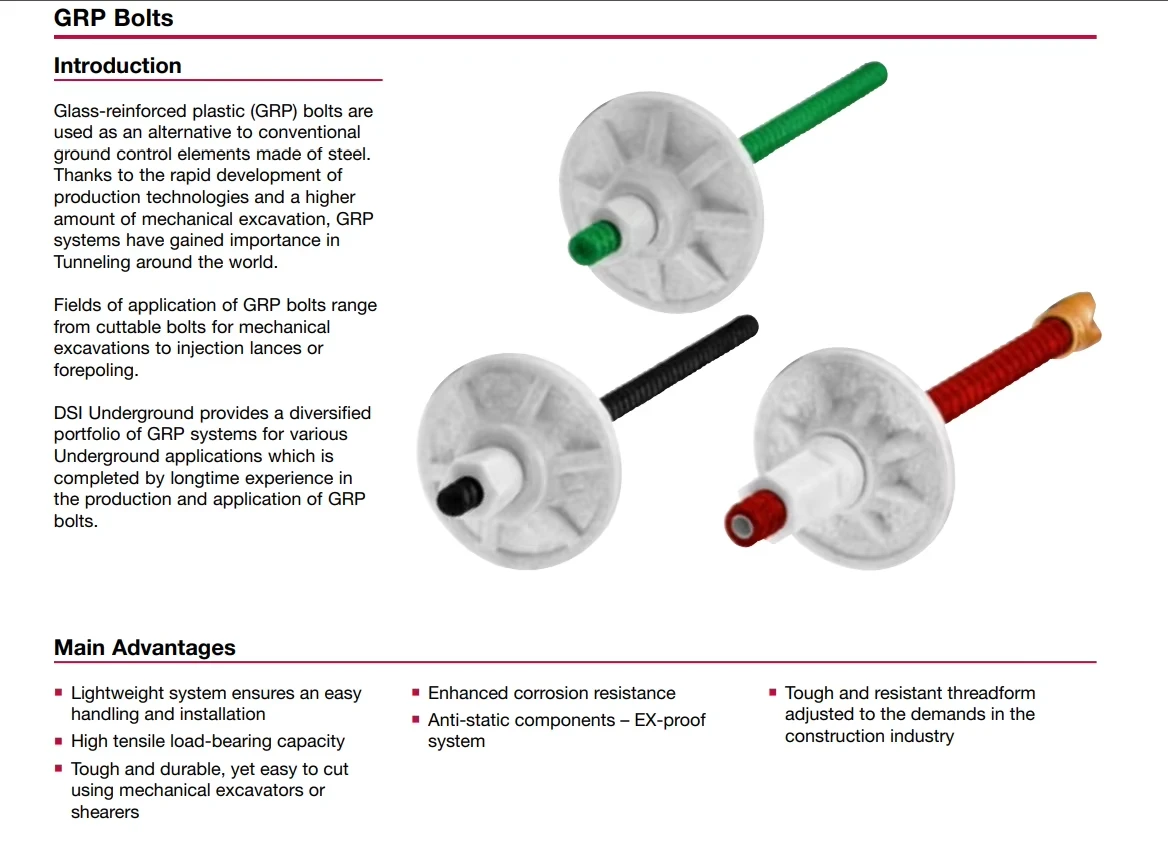

The backbone of the system. In standard coal roadways, Left-Hand or Right-Hand Thread Bolts provide the high tensile strength needed to stitch roof layers together. In mechanized, high-production coal faces where machinery must cut through the ribs, FRP (Fiberglass) Bolts are integrated into the package to protect expensive shearer picks.
B. The Chemical Bonding Agent (Resin Capsules)
Without the right anchor, even the best bolt is useless. Resin Capsules (fast, medium, or slow setting) lock the bolt into the borehole. The setting time must be precisely matched to the bolting equipment and ambient temperature to ensure 100% load transfer within seconds of installation.
C. The Load Distributor (Anchor Plates and Nuts)
The interface between the bolt and the rock face. High-strength Domal (Embossed) Plates and precision-threaded Hex Nuts distribute the massive clamping tension evenly, preventing the bolt head from punching through the surface and securing the wire mesh tightly against the roof.
D. The Surface Shield (Mining Wire Mesh)
While bolts handle deep reinforcement, Mining Wire Mesh (welded wire mesh) catches localized fragments and prevents the "unzipping" effect between anchor points. It provides the crucial skin-control needed to protect workers and equipment right below the roof.
2. Why "System Compatibility" Matters More Than Unit Price
When a procurement manager tries to save a few pennies by mixing and matching components from different suppliers, they often invite hidden disasters:
Thread Mismatch: If your threaded bolts are manufactured by Factory A and your nuts are sourced from Factory B, even a 0.5mm tolerance discrepancy can cause the nut to strip under high torque.
Plate Deformation: If a high-tensile bolt is paired with a thin, sub-standard anchor plate, the plate will buckle under pre-tension, rendering the bolt effectively "passive."
Mesh Aperture Failure: If the mesh grid size does not match the domal plate dimensions, the mesh will slip past the plate edges during a rock movement.
Sourcing a Complete Support Package from a single, certified manufacturer guarantees that every component has been engineered, tested, and proven to work together under stress.
Not all parts of a mine require the same package. A professional supplier helps you customize packages based on specific underground zones:
Development Headings (High Speed):
Package: Fast-setting resin capsules + high-strength rebar bolts + domal plates + standard welded mesh. (Optimized for fast cycle times).
Longwall Extraction Faces (Machine-Friendly):
Package: FRP bolts + FRP nuts/plates + cutable mesh. (Optimized for retreat mining where machines must cut through support).
High-Stress Intersections (Maximum Strength):
Package: Heavy-duty thread bolts + high-capacity cable anchors + thick structural plates + reinforced heavy wire mesh.
FAQ
Q: What international standards do your self-drilling anchor bolts comply with?
A: Our SDA systems (including R-thread and T-thread) are manufactured in strict accordance with ISO 10208 and ASTM standards. We use high-strength seamless steel tubing to ensure superior tensile and yield strength for demanding mining and tunneling projects.
Q: Why are SDA bolts more efficient than traditional rock bolts in fractured ground?
A: Traditional bolts require a pre-drilled hole which often collapses in loose ground. The SDA system combines drilling, grouting, and anchoring into a single operation. This eliminates the need for casing pipes and prevents borehole collapse, saving up to 50% of installation time.
Q: How do your spherical nuts handle uneven rock surfaces?
A: Our precision-engineered spherical nuts (dome nuts), when paired with domed plates, allow for 7 to 10 degrees of angular compensation. This ensures that the bolt maintains a secure, perpendicular load distribution even when the tunnel face is irregular or uneven.
The Zhongfu Mining Complete Package Advantage

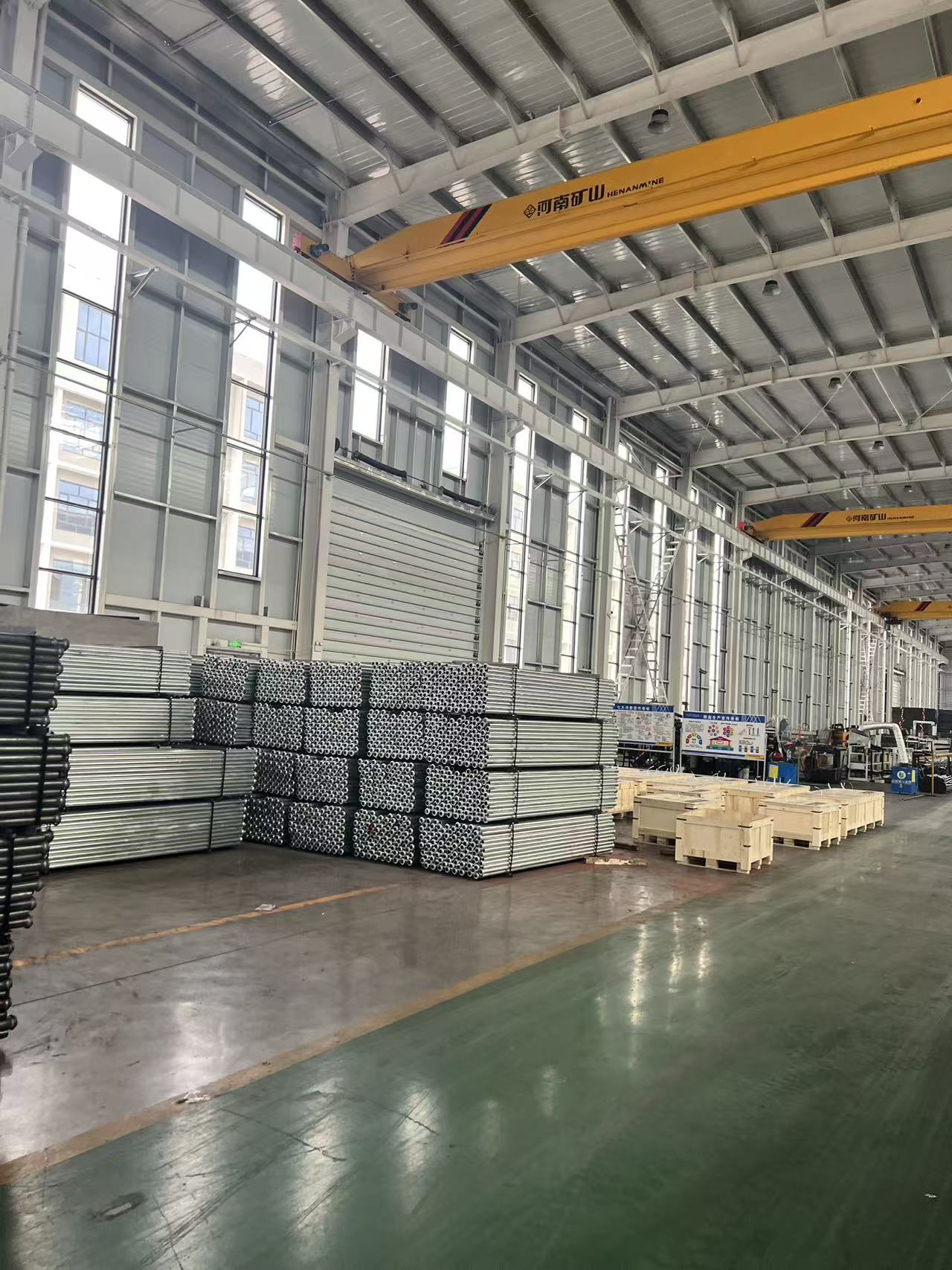

At Zhongfu Mining, we believe that ground support is a system, not a collection of spare parts. Because our newly expanded manufacturing facility produces everything under one roof-from Threaded and FRP Bolts to Resin Capsules, Plates, Nuts, and Wire Mesh-we eliminate the risks of cross-manufacturer incompatibility.
When you order a complete support package from us, you get:
Guaranteed Fitment: Every component is factory-tested for seamless mechanical and chemical compatibility.
Simplified Logistics: One consolidated shipment, reducing port delays and freight costs.
Unified Quality Control: Certified to international standards (ISO/ASTM) across all product lines.
Ready to streamline your site's support procurement with an integrated package?
